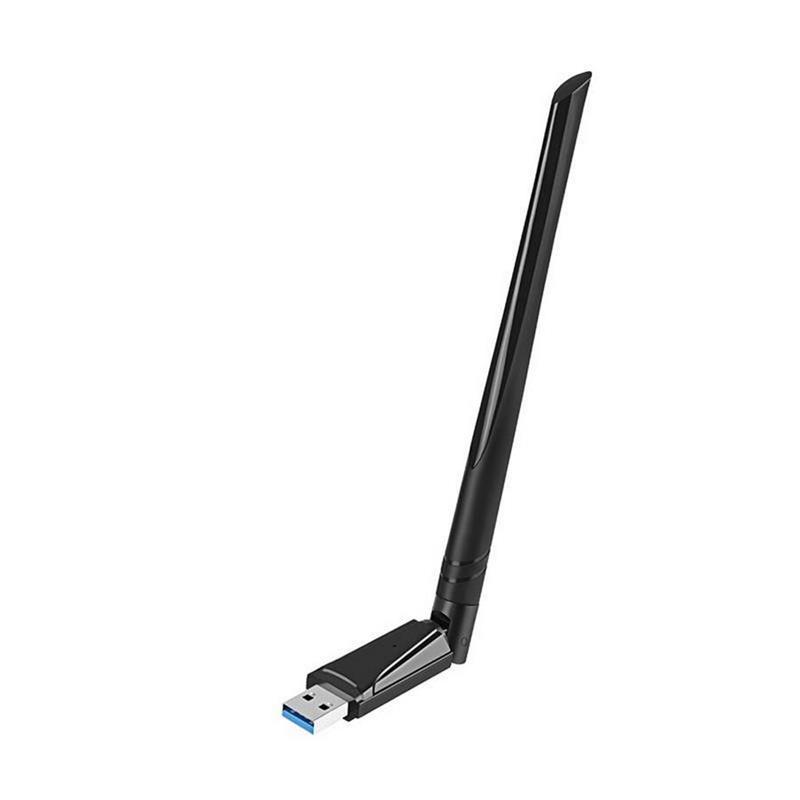

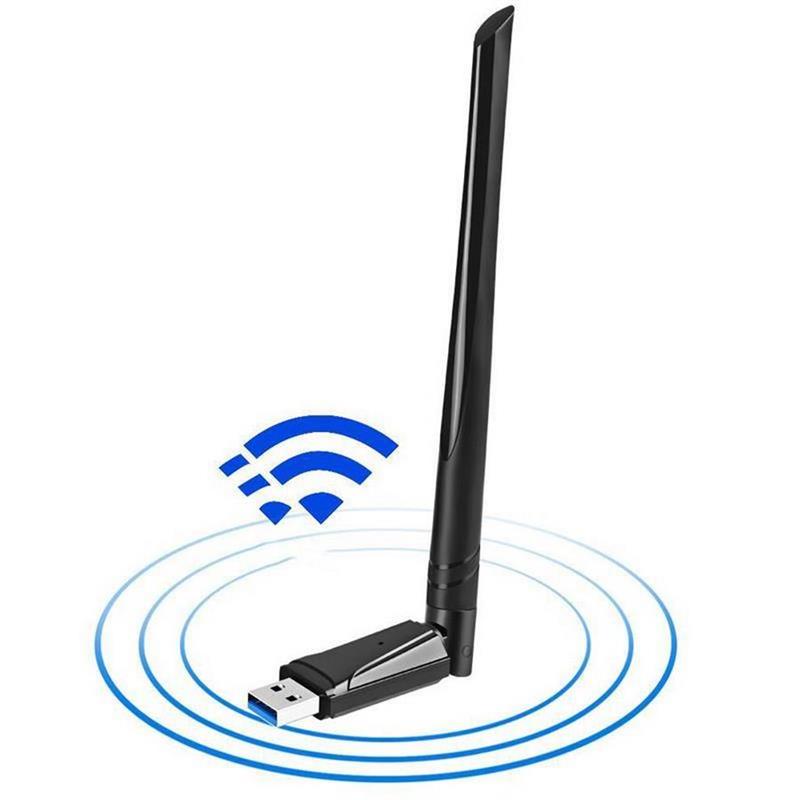

AC-1300Mbps USB3.0 Dual Band 2.4G/5.8G Wireless Adapter Network Card 5dB External Antenna Gigabit WiFi Transmitter Receiver
Specifications:
Product Type | 1300Mbps USB3.0 WiFi Adapter |
Model | 6B19 |
Color | Black |
Interface | USB 3.0 |
Chipset | RTL8812BU |
Antenna Type | 5dBi antenna |
Transmission Distance | 100m (indoor max) |
Wireless Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.412~2.484GHz/5.15~5.825GHz (according to country and region) |
Signal Rate | 2.4GHz: 400Mbps 5.8GHz: 867Mbps |
Transmit Power | 802.11b (CCK) 11Mbps: 18+/-1dBm 802.11g (OFDM) 54Mbps: 15+/-1dBm 802.11n (OFDM) 54Mbps: 15+/-1dBm 802.11ac (AC80) MCS9: 12+/-2dBm |
EVM | 11b 11Mbps:??-15db 11g 54Mbps:??-27db 11ac MCS9:??-30db |
Reception Sensitivity | 802.11b: -76+/-1dBm 802.11g: -65+/-1dBm 802.11n (HT20), -70+/-1dBm 802.11n (HT40), -65+/-1dBm AC80-MCS9: -55+/-1dBm |
Wireless Transmission Rate | 11b: Max 11Mbps 11g: Max 54Mbps 11n: Max 400Mbps AC: Max 867Mbps |
Operating System | Windows XP/Win 7/Win 8/Win 10/VISTA/OS X |
Wireless Security Support | WPA/WPA2/WEP/802.1X/WMM |
Product Size (L*W*H) | 253 x 46 x 10mm |
Package Weight | 73g |
Features:
?? Ultimate range and performance with 802.11ac – up to 1300 Mbps
?? Faster access with USB 3.0, compatible with USB 2.0
?? High gain antennas for improved performance
?? Works with all standard WiFi ?? 802.11 a/b/g/n and ac devices
?? Beamforming+ technology boosts speed, range and reliability
?? Desktop dock for flexible placement
Package Include
d
:
1 x 1300Mbps USB3.0 WiFi Adapter
1 x User Manual
